How Lamp Shades Attach to Lamps (Complete Guide to All Fittings)

Buying a new lamp shade becomes much easier once you understand how the shade actually connects to the lamp.

Some shades rest on a metal harp and are secured with a decorative finial. Others attach directly to the bulb socket, clamp around the bulb, sit on a glass chimney, or are held in place with screws.

These different attachment systems are known as lamp shade fittings or fitters.

This guide explains how lamp shades attach to lamps, how to identify the fitting already installed on your lamp, and what to measure before ordering a replacement.

We will cover:

• Spider and harp fittings
• UNO fittings
• Euro or ring fittings
• Clip-on fittings
• Chimney fittings
• Neckless and screw fittings
• Pendant shade holders
• Fitter adapters and conversion options

Understanding these systems before buying can prevent a shade from sitting crooked, wobbling, touching the bulb, or failing to attach at all.

Quick Answer: How Does a Lamp Shade Attach to a Lamp?

Most household lamp shades attach through one of three common systems:

Fitting Type	How It Attaches	Common Applications
Spider fitting	Rests on a harp and is secured with a finial	Table lamps and floor lamps
UNO fitting	Attaches directly around or onto the bulb socket	Small table lamps, bridge lamps and swing-arm lamps
Clip-on fitting	Clips directly onto the light bulb	Accent lamps, chandeliers and wall sconces

Other lamps may use Euro rings, glass chimneys, three-screw holders, galleries, or specialized pendant fittings.

Spider, UNO, and clip-on fittings are generally regarded as the three principal replacement-shade systems used on household lamps.

What Is a Lamp Shade Fitter?

A lamp shade fitter is the metal structure inside a lamp shade that connects the shade to the lamp.

It may look like:

• A small washer in the center of several metal arms
• A larger ring positioned near the bottom of the shade
• A wire clip that grips the bulb
• A circular ring that rests over a chimney
• A rim held by three or four screws

The fitter is separate from the decorative shape of the shade.

For example, two drum shades may look almost identical from the outside, but one may have a spider fitter while the other has an UNO fitting. They would not attach to the same lamp without compatible hardware or an adapter.

That is why fitting type should always be checked before color, pattern, material, or shape.

The Main Lamp Shade Fitting Types

1. Spider Fitter and Harp System

The spider fitter is one of the most common attachment systems for American table lamps and floor lamps.

A spider fitting has several metal arms that meet at a small center washer near the top of the shade. The washer rests on the threaded post at the top of a lamp harp.

A decorative finial then screws onto the post and holds the shade in place.

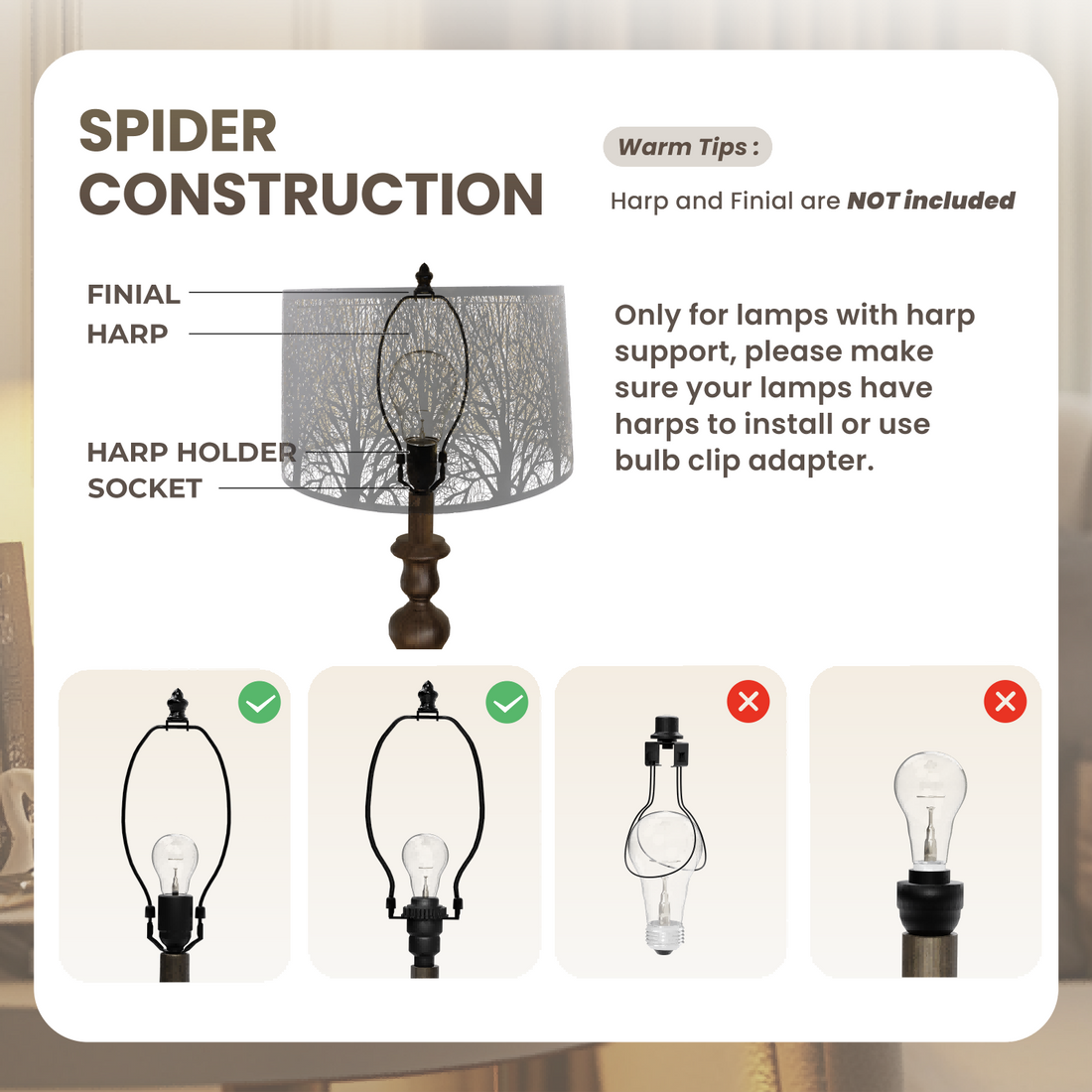

Parts of a Spider Fitter System

A complete spider attachment normally includes:

1. Harp saddle: The bracket installed below the bulb socket
2. Lamp harp: The U-shaped metal support surrounding the bulb
3. Spider fitter: The metal arms and center washer inside the shade
4. Finial: The decorative screw that secures the shade

How a Spider Fitter Attaches

1. Unplug the lamp.
2. Install the harp into the harp saddle.
3. Lower the spider fitter onto the threaded harp post.
4. Center the shade.
5. Screw the finial onto the post.
6. Check that the shade is level and stable.

Spider fitters are widely used because the harp supports the shade independently of the bulb socket. The harp height can also be changed to position the shade higher or lower.

Best Uses

Spider fittings work especially well for:

• Medium and large table lamps
• Traditional bedside lamps
• Decorative living-room lamps
• Floor lamps with substantial shades
• Heavier metal lamp shades

Spider fitters are commonly paired with a harp and finial, and the correct harp height is important for keeping the bulb, socket and hardware visually covered.

Common Spider Fitter Problems

The shade sits too high:
The harp may be too tall.

The socket is visible below the shade:
The harp may be too tall, or the shade may be too short.

The shade touches the lamp body:
The harp may be too short.

The shade tilts:
The spider washer may not be centered, the harp may be bent, or the finial may be unevenly tightened.

The shade rotates easily:
Tighten the finial gently. Do not overtighten it against delicate hardware.

For detailed installation steps, see our guide to installing harp, clip-on, and UNO metal lamp shades.

2. UNO Lamp Shade Fitting

An UNO fitting attaches the lamp shade directly to the bulb socket, so it does not normally require a harp or finial.

The fitter is positioned lower inside the shade and usually consists of a circular ring connected to the shade by metal arms.

UNO fittings are often found on:

• Small table lamps
• Bridge-arm floor lamps
• Swing-arm lamps
• Reading lamps
• Some pendant fixtures
• Lamps designed without a harp

There are two important UNO variations.

Slip UNO Fitting

A slip UNO fitter slides over the socket and rests on a wider section of the socket body.

It may be held in place by pressure, by the socket shape, or by the bulb once the bulb is installed.

Slip UNO fittings are often associated with older lamps and bridge-arm fixtures.

Threaded UNO Fitting

A threaded UNO fitting connects to a threaded socket. The fitter may screw directly onto the socket or be secured between threaded retaining rings.

Threaded UNO systems can be very secure, but thread diameter and socket design must match.

How an UNO Shade Attaches

1. Unplug the lamp.
2. Remove the bulb.
3. Remove the socket retaining ring when applicable.
4. Position the UNO fitter over the socket.
5. Reinstall and tighten the retaining ring.
6. Reinstall the bulb.
7. Confirm that the bulb does not touch the shade.

Unlike spider fittings, UNO fittings are closely connected to the lamp’s socket dimensions. A shade with the wrong UNO ring diameter may not fit even when its overall size looks correct.

UNO fitters attach directly around the socket and generally do not require a harp or finial. Depending on the design, they may be threaded or pressure-fitted.

3. Euro Fitter or European Ring Fitting

A Euro fitter resembles an UNO fitting but normally has a wider center ring.

It fits over a threaded lamp holder and is secured with a removable socket ring. Euro fitters are frequently found on European-style table lamps, pendant lights, and fixtures using ringed sockets.

How a Euro Fitter Attaches

1. Turn off and unplug the fixture.
2. Remove the bulb.
3. Unscrew the retaining ring from the socket.
4. Place the Euro fitter over the threaded socket.
5. Reinstall the retaining ring.
6. Tighten it by hand.
7. Reinstall the bulb.

UNO vs. Euro Fitter

Although the two systems look similar, the ring dimensions may be different.

Do not assume that an UNO shade will fit a European socket—or that a Euro ring will fit a standard American socket—without measuring the opening.

When shopping, check:

• Inside fitter diameter
• Outside fitter diameter
• Socket thread diameter
• Whether a reducer ring is included
• Whether the fitting is intended for a table lamp or pendant

Euro fitters are clamped onto a compatible threaded socket with a retaining ring and may require a reducer when used with a smaller lamp holder.

4. Clip-On Lamp Shade Fitting

A clip-on shade attaches directly to the light bulb instead of the lamp socket or harp.

The shade contains a wire clip that gently grips the bulb.

Clip-on shades are most frequently used for:

• Small accent lamps
• Chandelier arms
• Wall sconces
• Buffet lamps
• Small bedside lamps
• Decorative candelabra fixtures

Standard Bulb Clip

A standard clip-on fitter is designed to grip the rounded sides of a household-style bulb.

The exact fit depends on bulb diameter and shape. Changing from a traditional bulb to an unusually narrow LED bulb may cause the shade to become loose or sit at an angle.

Candelabra Bulb Clip

Smaller clip-on shades may be designed for narrow candelabra bulbs, including bulbs used in chandeliers and wall sconces.

These clips are not normally interchangeable with clips made for larger household bulbs.

How a Clip-On Shade Attaches

1. Turn off the lamp.
2. Allow the bulb to cool completely.
3. Hold the shade level above the bulb.
4. Align the wire clip with the sides of the bulb.
5. Press down gently until the clip grips the bulb.
6. Check that the shade sits straight.

Clip-on shades are convenient, but bulb compatibility is critical. The bulb must match the diameter and shape expected by the clip.

Clip-on fitters are typically used for smaller shades and grip the bulb directly rather than attaching to a harp or socket ring.

5. Chimney Fitter

A chimney fitter is commonly found on traditional lamps that use a glass chimney or central glass tube.

Instead of connecting to a harp or socket, the lamp shade rests on the top of the chimney.

This attachment is associated with:

• Hurricane lamps
• Oil-lamp-inspired electric lamps
• Traditional boudoir lamps
• Antique bridge lamps
• Some vintage floor lamps

The fitter normally has a circular opening sized to sit securely on the chimney.

What to Measure

Measure the chimney’s outside diameter at the point where the shade will rest.

A fitter that is too small will not slide over the chimney. A fitter that is too large may wobble or sit unevenly.

Because antique chimneys vary in size, accurate measurement is especially important.

6. Neckless or Three-Screw Fitter

Neckless glass shades do not have a long neck or threaded attachment.

Instead, the shade’s rim fits into a metal holder and is secured by three or four small screws positioned around the fixture.

These fittings are often used on:

• Ceiling lights
• Wall sconces
• Vanity lights
• Pendant fixtures
• Vintage glass shades

How It Attaches

1. Switch off power to the fixture.
2. Loosen the holder screws evenly.
3. Insert the shade rim into the holder.
4. Tighten each screw gradually.
5. Alternate between screws to keep the shade centered.

Never overtighten screws against glass. Tighten only enough to hold the shade securely.

A metal shade intended for a spider or UNO fitting cannot normally replace a three-screw glass shade without changing the holder.

7. Pendant Shade Ring and Gallery Fittings

Pendant lamp shades may be supported by a socket ring, shade carrier, gallery, or metal holder.

The shade may:

• Sit between two threaded socket rings
• Rest inside a metal gallery
• Attach with small screws
• Hang from a central rod
• Connect to a dedicated pendant frame

Pendant attachment systems vary considerably, so both the socket and shade opening should be measured before replacement.

For hardwired pendant and ceiling fixtures, switch off power at the breaker and use a qualified electrician whenever wiring or fixture hardware must be changed.

How to Identify Your Lamp Shade Fitting

Remove the existing shade and inspect the lamp.

You Probably Have a Spider Fitter If:

• A U-shaped harp surrounds the bulb
• A threaded post appears above the bulb
• A finial screws onto the top
• The shade has a small center washer near its top

You Probably Have an UNO Fitter If:

• There is no harp
• The shade sits close to the bulb socket
• A metal ring surrounds the socket
• The fitter is positioned near the lower part of the shade

You Probably Have a Euro Fitter If:

• The socket has a removable threaded retaining ring
• The shade has a relatively wide center opening
• The ring clamps the shade onto the lamp holder

You Probably Have a Clip-On Fitter If:

• There is no harp or socket ring
• A wire clip is visible inside the shade
• The shade grips the bulb directly

You Probably Have a Chimney Fitter If:

• A glass chimney rises through the lamp
• The shade rests on the chimney instead of the socket

You Probably Have a Three-Screw Fitter If:

• The fixture has a metal cup or gallery
• Three or four screws point inward toward the shade rim
• The old shade is usually made from glass

What to Measure Before Buying a Replacement Lamp Shade

Knowing the attachment type is only the first step. You must also measure the lamp and shade.

Record the following:

1. Fitter Type

Identify whether it is spider, UNO, Euro, clip-on, chimney, or screw-mounted.

2. Fitter Diameter

For UNO, Euro, chimney, and gallery systems, measure the inside diameter of the fitter opening.

3. Fitter Drop

The fitter drop is the vertical distance between the top edge of the shade and the fitter’s attachment point.

A deep drop positions the shade lower. A shallow drop positions it higher.

4. Harp Height

For a spider fitter lamp shade, measure the harp from the bottom of the harp arms to the top of the threaded post.

5. Shade Dimensions

Lamp shades are usually listed in this order:

Top diameter × bottom diameter × vertical height

For example:

6" × 10" × 7.5"

Rectangular and oval shades may include both top and bottom length-and-width measurements.

6. Bulb Clearance

Confirm that the bulb will not touch the shade.

Allow space for:

• Air circulation
• Safe heat management
• Bulb installation and removal
• Correct light distribution

7. Lamp Proportion

The fitting may technically attach while the shade still looks too small, too large, too high, or too low.

For more help with size and proportion, read our complete lampshade buying guide.

Lamp Shade Fitting Comparison Chart

Fitting	Requires Harp?	Attaches To	Best For	Main Compatibility Check
Spider	Yes	Harp post and finial	Table and floor lamps	Harp height and fitter drop
Slip UNO	No	Socket body	Bridge and reading lamps	Socket diameter
Threaded UNO	No	Threaded socket	Table lamps and pendants	Thread size
Euro	No	Socket with retaining ring	European lamps and pendants	Ring diameter
Clip-on	No	Light bulb	Small lamps and chandeliers	Bulb size and shape
Chimney	No	Glass chimney	Hurricane and antique lamps	Chimney diameter
Neckless	No	Screw-mounted holder	Glass ceiling and wall shades	Shade rim diameter
Gallery or pendant	Usually no	Gallery, carrier or socket ring	Pendant fixtures	Holder dimensions

Can You Convert One Lamp Shade Fitting to Another?

In some cases, yes.

Available adapters may include:

• UNO-to-spider adapters
• Clip-on shade adapters
• Harp saddles
• Adjustable harps
• Euro reducer rings
• Shade carriers
• Chimney-to-harp adapters

However, an adapter does not automatically make every shade suitable for every lamp.

Before converting, consider:

• Shade weight
• Lamp stability
• Bulb position
• Heat clearance
• Socket condition
• Adapter quality
• Whether the lamp is portable or hardwired

A heavy metal shade should be supported by stable hardware. For many table and floor lamps, a correctly sized harp and spider fitter provide a secure solution.

Do Metal Lamp Shades Reduce Light?

A metal lamp shade does not automatically make a lamp feel darker.

A solid metal surface does prevent light from passing directly through that specific area, but a properly designed shade controls where the light travels rather than simply eliminating it.

Light may be directed:

• Downward onto a table or reading area
• Upward toward the ceiling
• Through laser-cut or etched patterns
• Through an open top and bottom
• Across a reflective gold or brass-toned interior

This controlled distribution can reduce harsh glare around the bulb while creating a softer, more comfortable atmosphere.

Perforated and etched metal shades can also produce decorative light-and-shadow patterns on nearby walls. The effect can make a room feel warmer, more layered, and visually more refined.

Actual brightness depends on:

• Bulb lumen output
• LED color temperature
• Shade opening size
• Pattern density
• Interior finish
• Distance from surrounding walls
• Whether the shade is open or closed at the top and bottom

A black exterior can create a strong, architectural silhouette, while a gold-toned interior can reflect warmer light toward the open areas of the shade.

For this reason, a metal shade should be viewed as a tool for controlling glare, directing light, and improving atmosphere, not simply as a barrier around the bulb.

Common Lamp Shade Attachment Mistakes

Buying by Appearance Alone

A beautiful shade is not useful if its fitter does not match the lamp.

Check the fitting before selecting color or style.

Confusing Spider and UNO Fitters

A spider shade requires a harp. An UNO shade connects around the socket.

The two cannot normally be exchanged without additional hardware.

Ignoring Fitter Drop

Two spider shades can use the same harp attachment but sit at different heights because their fitter drops are different.

Using the Wrong Bulb With a Clip-On Shade

A clip designed for a traditional rounded bulb may not grip a narrow or unusually shaped LED bulb.

Choosing a Harp That Is Too Tall

This exposes the socket and makes the shade appear to float above the lamp.

Choosing a Harp That Is Too Short

The bulb may sit too high inside the shade or touch the shade.

Overtightening Screws or Retaining Rings

Excess pressure can bend metal fittings, damage threads, or crack glass shades.

Forgetting the Weight of the Shade

A large metal shade needs a stable lamp base and secure attachment system.

Which Fitting Is Best for a Metal Lamp Shade?

For medium and large metal replacement shades, a spider fitter is often an excellent choice because the harp supports the shade above the socket and the finial holds it securely.

A spider fitting also makes it easier to:

• Replace the shade later
• Adjust the shade height by changing the harp
• Center the shade
• Support a wider shade
• Use decorative finials

Clip-on fittings are more suitable for lightweight, smaller shades.

UNO and Euro fittings can produce a clean appearance without a harp, but the shade must match the socket precisely.

Before ordering, browse our complete collection of vintage metal lamp shades and check the fitting description and dimensions on each product page.

Two Recommended Metal Lamp Shades

1. Small Metal Lampshade – Etched Forest, 6" × 10" × 7.5"

The Small Metal Lampshade – Etched Forest with Spider Fitter is a practical choice for table lamps, bedside lamps, and smaller decorative bases.

It features:

• A 6-inch top diameter
• A 10-inch bottom diameter
• A 7.5-inch height
• Spider fitter construction
• Black exterior
• Warm gold interior
• Etched forest pattern

Why We Recommend It

Its spider fitter makes it suitable for compatible harp-style lamps, while the compact proportions work well on nightstands, side tables, and smaller living-room lamps.

The metal construction is more durable than delicate fabric, while the etched pattern allows selected light to escape and create a gentle decorative effect.

The black-and-gold combination also helps the lamp look more intentional and visually refined, even when the light is turned off. Product specifications confirm its spider fitting and 6" × 10" × 7.5" dimensions.

2. Large Drum Lampshade – 12" × 14" × 10" Spider Fitter

For a larger table lamp or compatible floor lamp, we recommend the Large Drum Lampshade – 12" × 14" × 10" Spider Fitter.

It features:

• A 12-inch top diameter
• A 14-inch bottom diameter
• A 10-inch height
• Universal spider fitter
• Drum-style profile
• Etched tree pattern
• Compatibility with suitable table and floor lamps

Why We Recommend It

The broader drum shape gives the lamp more visual presence and works well with larger or heavier bases.

Its spider fitting provides a stable attachment when paired with the correct harp, making it particularly useful for lamps that need a substantial replacement shade.

The etched tree pattern creates visual depth, while the metal body directs the strongest light through the open top, open bottom, and patterned areas. This helps soften exposed-bulb glare and produces a warmer, more atmospheric result.

The product page identifies it as a 12" × 14" × 10" metal drum shade with a universal spider fitter for compatible table and floor lamps.

Frequently Asked Questions

Are Lamp Shade Fittings Universal?

No. Lamp shade fittings are not universal.

Spider, UNO, Euro, clip-on, chimney, and screw-mounted shades use different attachment methods. Always compare the shade fitting with the hardware already installed on the lamp.

What Is the Most Common Lamp Shade Fitting?

The spider fitter is one of the most common systems for American table lamps and floor lamps. It rests on a harp and is secured with a finial.

How Do I Know Whether My Lamp Needs a Harp?

Your lamp probably uses a harp if it has a harp saddle below the socket or a U-shaped metal support surrounding the bulb.

Can a Spider Shade Fit a Lamp Without a Harp?

Not directly. You may be able to install a harp saddle and harp or use a compatible adapter, depending on the lamp.

Can an UNO Shade Be Converted to a Spider Fitter?

Some conversion adapters are available, but compatibility depends on the UNO ring, socket, shade weight, and lamp structure.

Do Clip-On Shades Fit Every Bulb?

No. Clip-on fittings are designed around specific bulb sizes and shapes. A clip may become loose when used with a bulb that is narrower than intended.

What Is the Difference Between UNO and Euro Fitters?

Both attach near the socket, but their ring diameters and attachment methods can differ. Euro fitters commonly use a threaded retaining ring, while UNO systems may be threaded or pressure-fitted.

Why Does My New Lamp Shade Sit Crooked?

Possible causes include:

• Bent harp
• Off-center fitter
• Incorrect bulb shape
• Loose socket ring
• Uneven finial pressure
• Wrong fitter diameter
• Damaged attachment hardware

Can a Metal Lamp Shade Be Used on a Table Lamp?

Yes, provided the fitting, dimensions, weight, bulb clearance, and lamp proportions are compatible.

Will a Metal Shade Block All the Light?

No. A metal shade controls and redirects light through its openings and patterned areas. An open or perforated design can provide useful illumination while reducing direct glare and creating a more atmospheric effect.

Final Thoughts

Learning how lamp shades attach to lamps is the most important step in choosing a replacement shade.

Start by identifying the existing fitting:

• Spider and harp
• UNO
• Euro
• Clip-on
• Chimney
• Neckless screw fitting
• Pendant gallery or shade ring

Then measure the fitter, socket, harp, shade dimensions, fitter drop, and bulb clearance.

A correct attachment does more than hold the shade in place. It keeps the lamp level, improves stability, positions the bulb correctly, and allows the shade to control light as intended.

With the right fitting, a metal lamp shade can soften harsh glare, guide light upward and downward, introduce elegant patterned shadows, and give the entire room a warmer and more sophisticated atmosphere.
